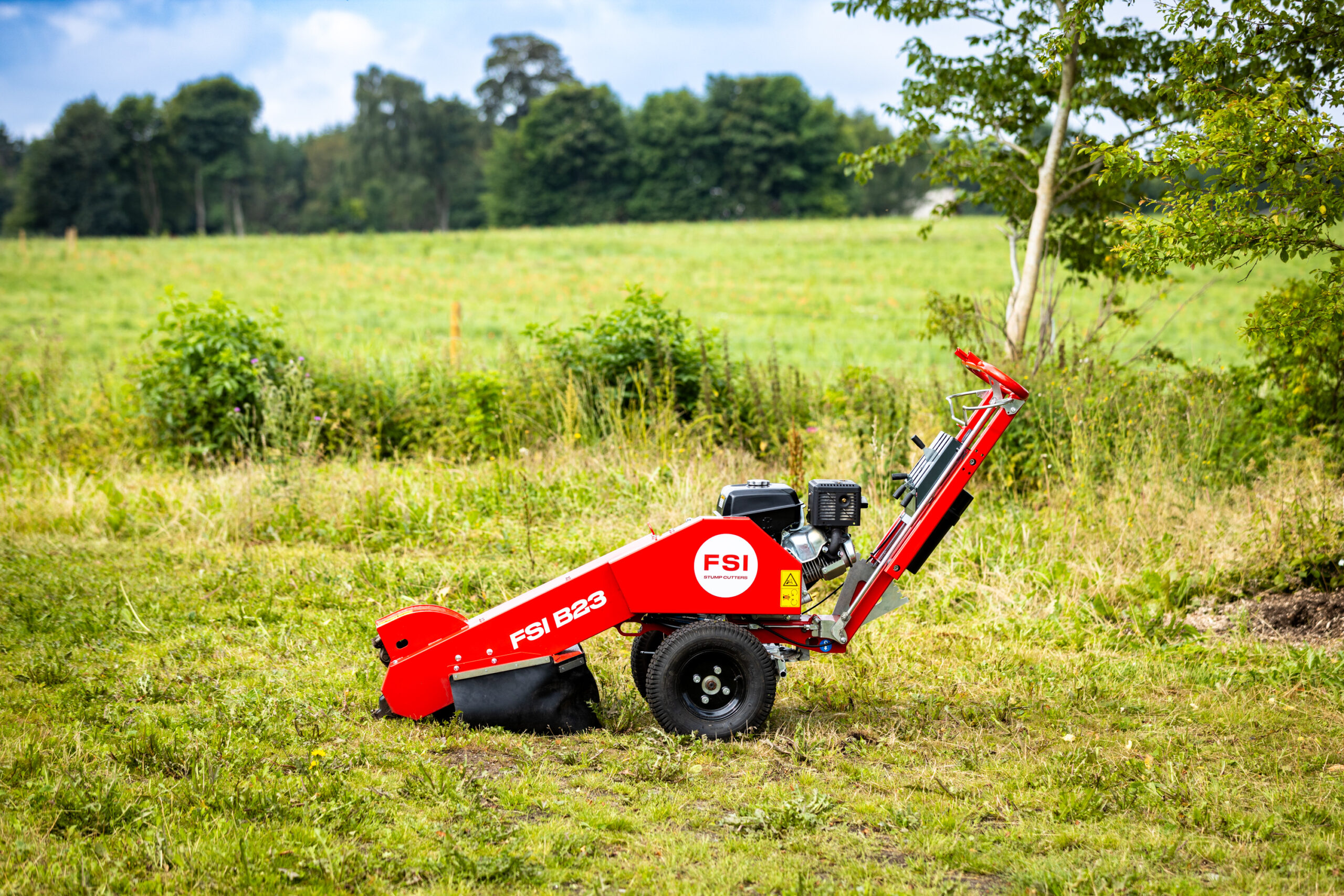

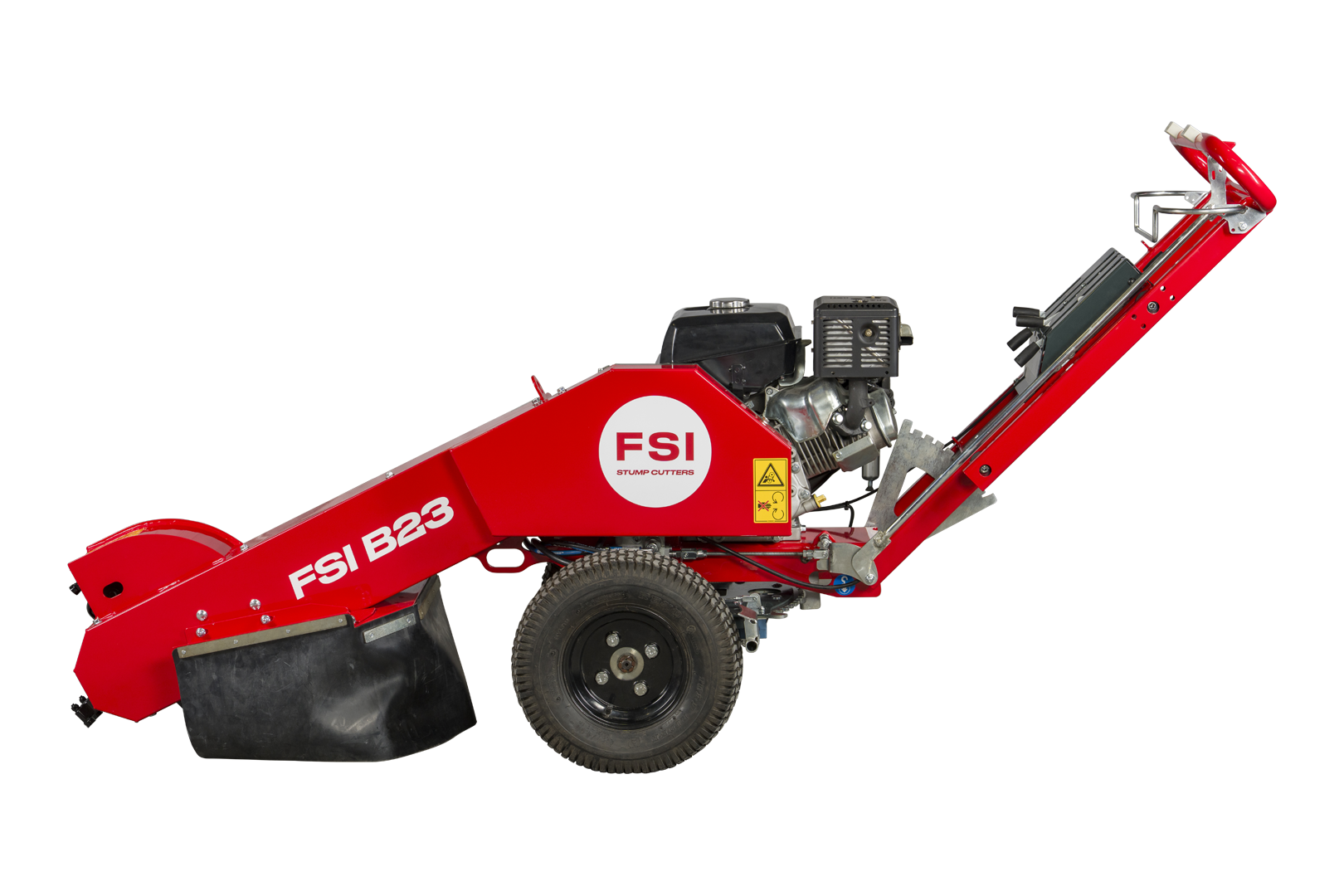

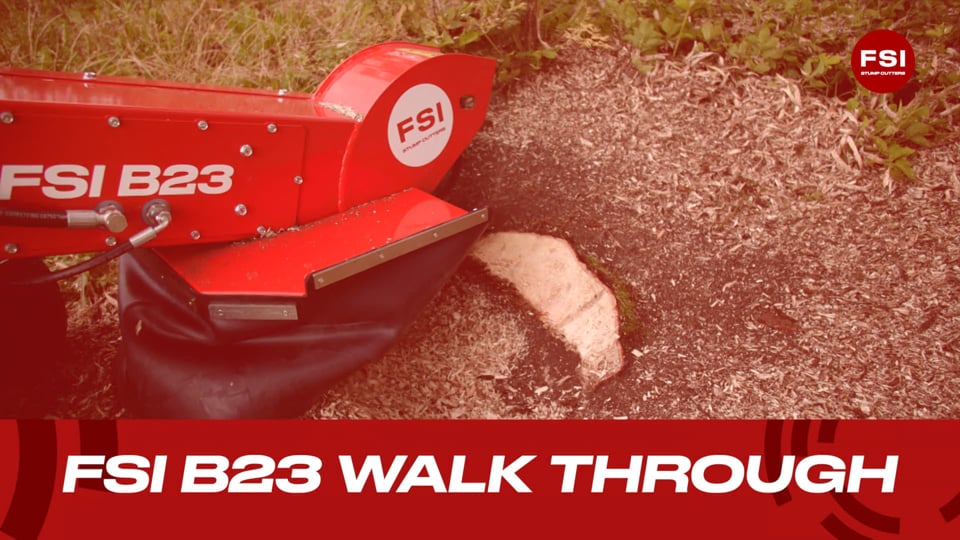

FSI B23

14 HP 2WD PEDESTRIAN STUMP GRINDER

  • Choose between 14 hp Kohler CH440 or 11.1 hp GX390 Honda engine
  • No daily maintenance, the cutter wheel bearing is pre-greased from the factory for more than 1000 hours of normal operation.
  • Auto sweep-release, automatic release of the sweep when braked
  • 68 cm
  • 118 cm
  • 2,1 cm
  • 30 cm
  • 25
  • 14 hp / 11 hp
  • Petrol
  • FSI 21 - 8 pcs
  • 215 kg
  • No

Categories: , Tag:

Description

The FSI B23 is the successor to the popular FSI B22, combining proven design features from both the FSI B21 and FSI B22 models.

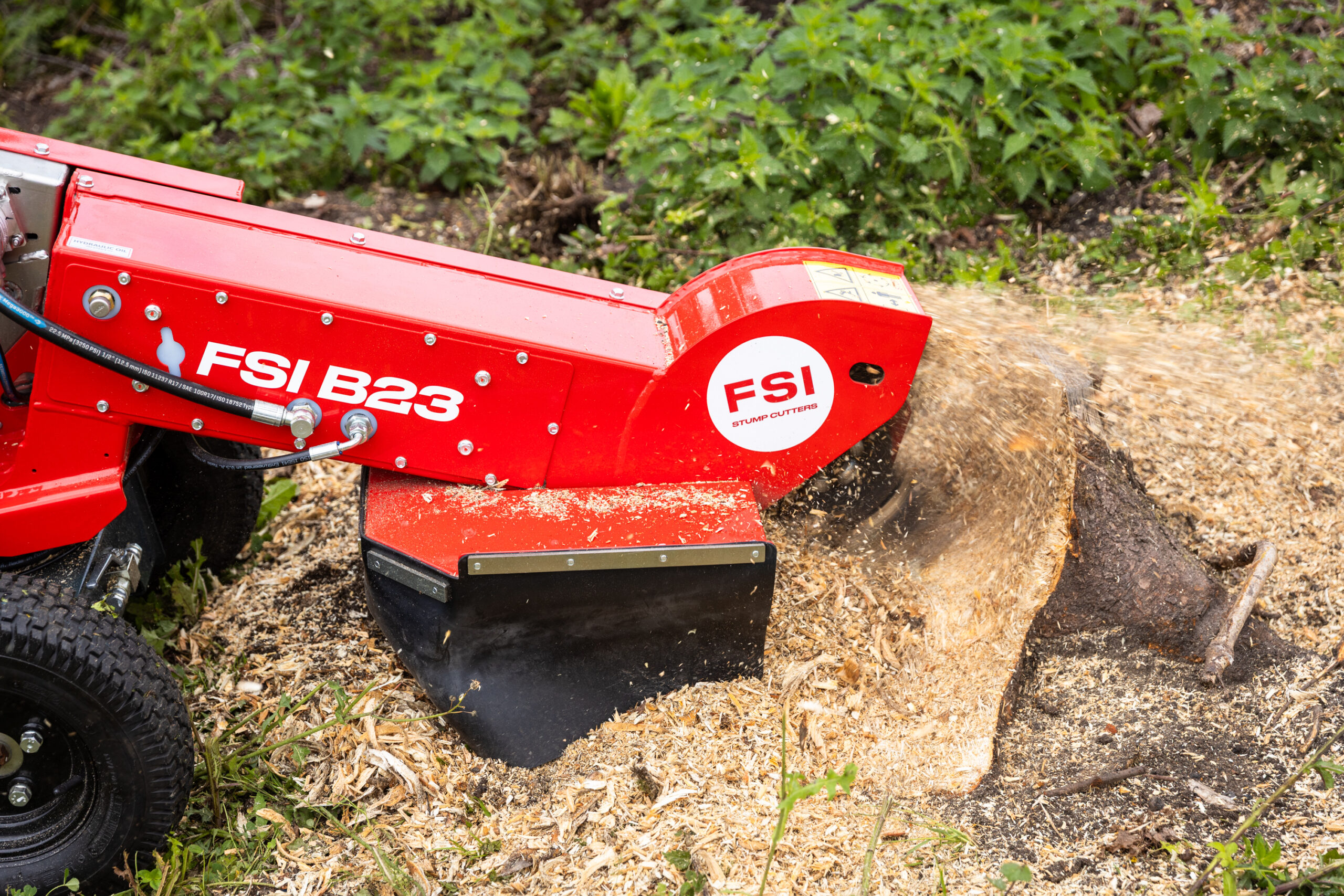

Choose between a 14 hp Kohler or an 11 hp Honda engine, and benefit from hydraulic 2WD alongside new features like Auto Sweep Release and a redesigned cutter wheel housing.

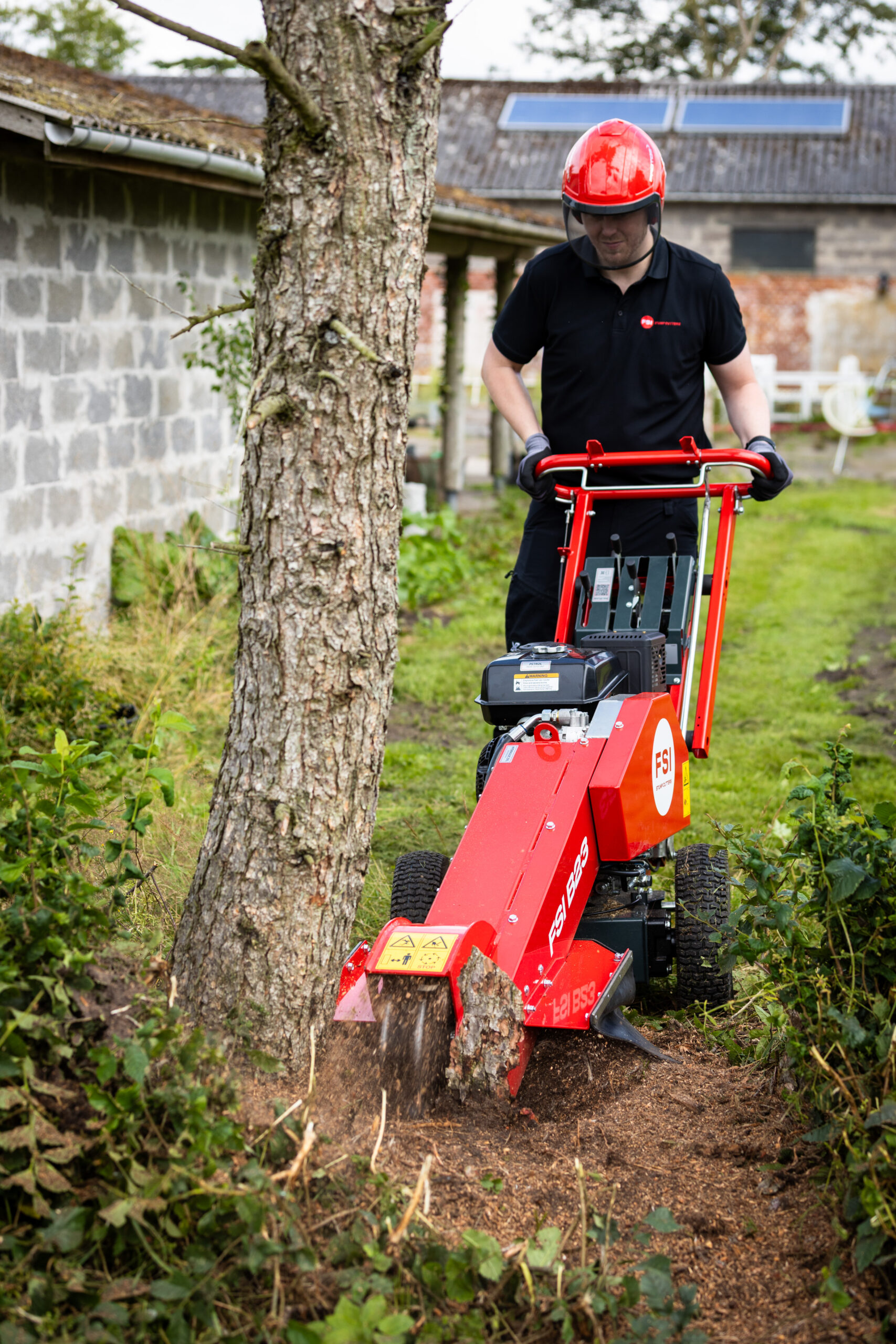

FSI B23 combines power and user-friendliness with familiar design elements to make stump grinding easy and efficient. Built for arborists, landscapers, and contractors who need a dependable machine they can count on every day.

Operator-friendly design

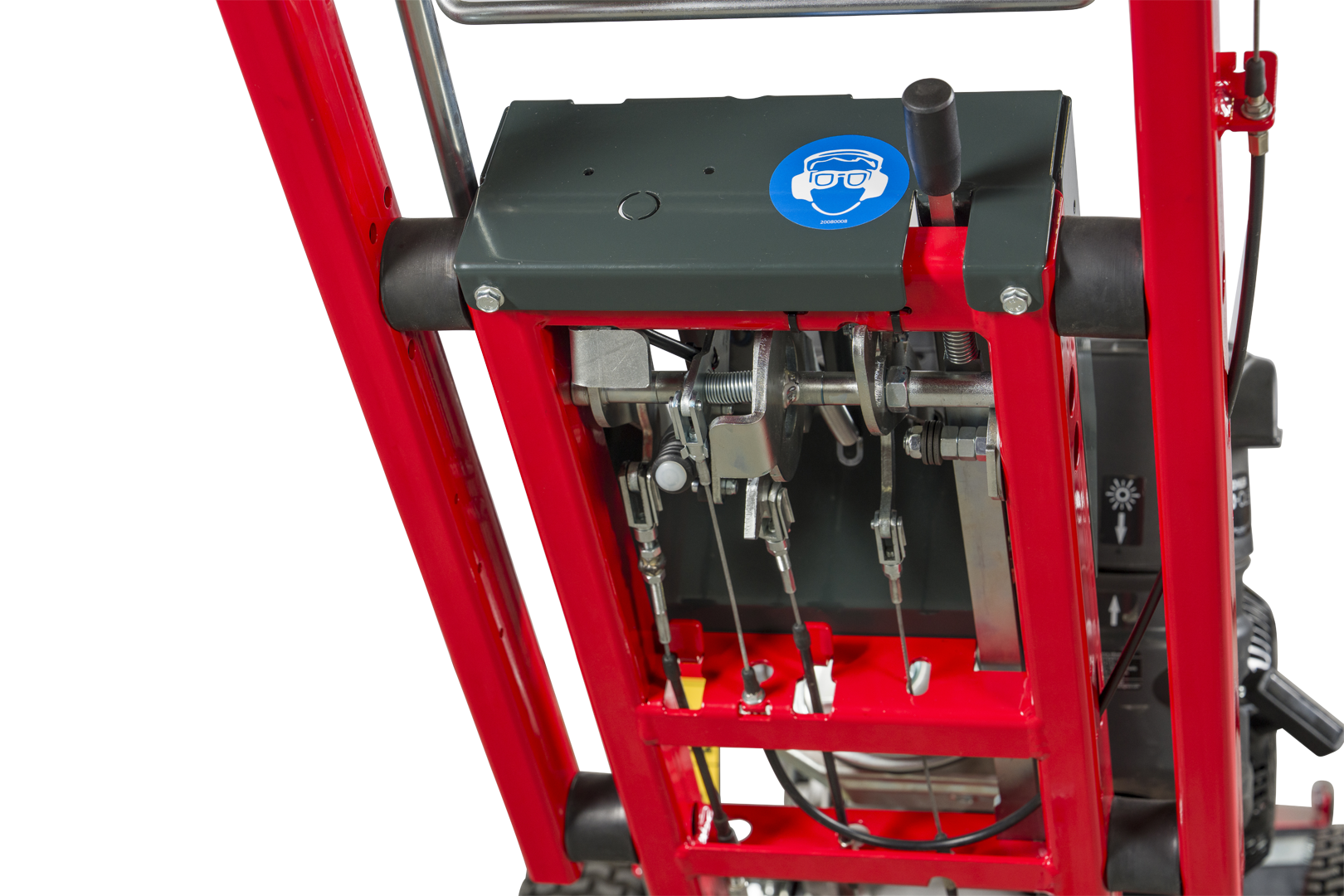

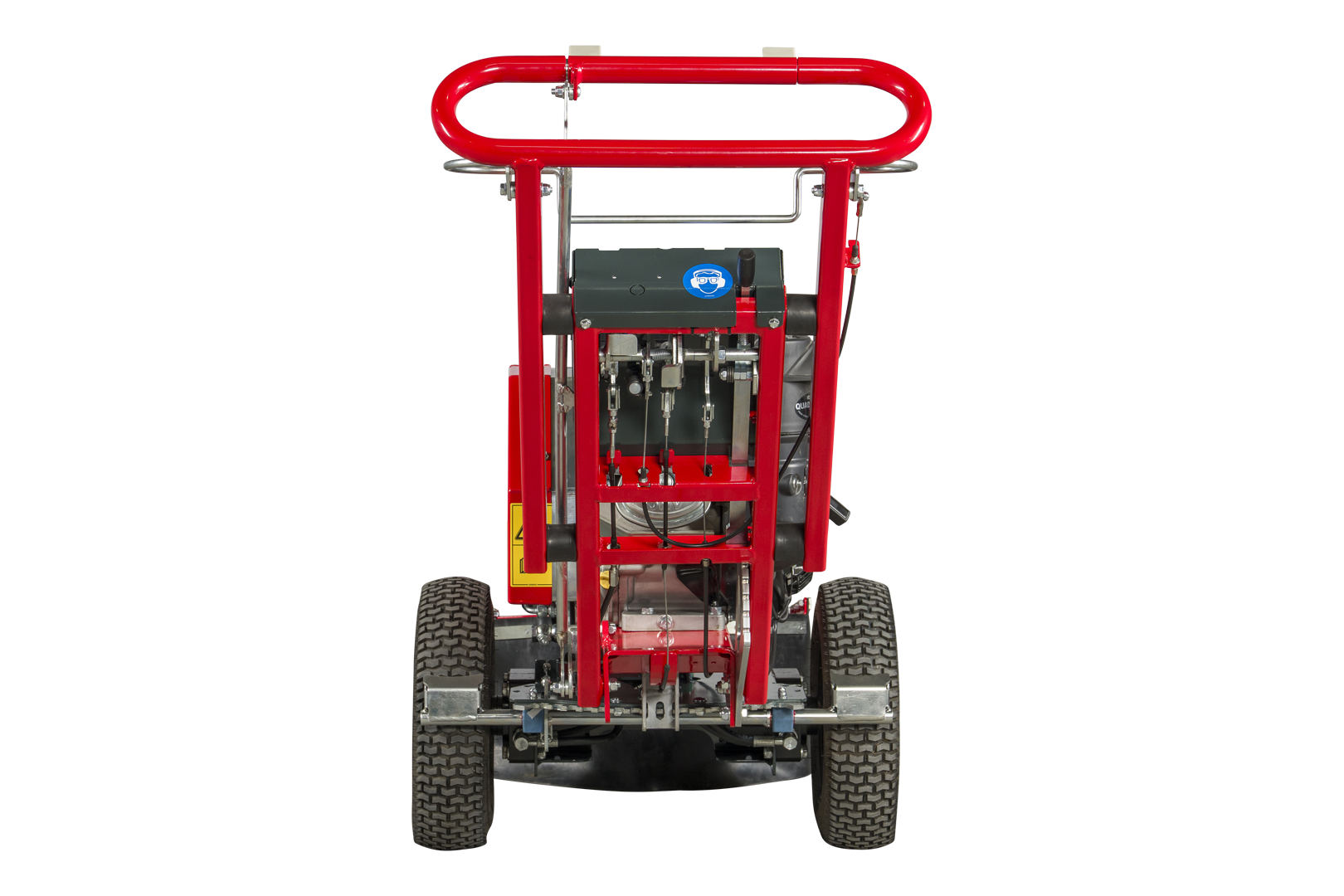

The vibration-damped and height-adjustable handle combined with the pivot-point design make it less strenuous for the operator to sweep the cutter arm from side to side.

Auto sweep-release

This unique FSI feature automatically releases the sweep lock when the wheel brakes are activated, making it effortless to change position at the stump. No manual unlocking needed – just brake and reposition

No daily maintenance

The closed bearing for the cutter wheel is pre-greased from factory for more than 1000 hours of normal operation, eliminating the risk of under- or over-greasing and make daily maintenance a thing of the past.

Self-propelled

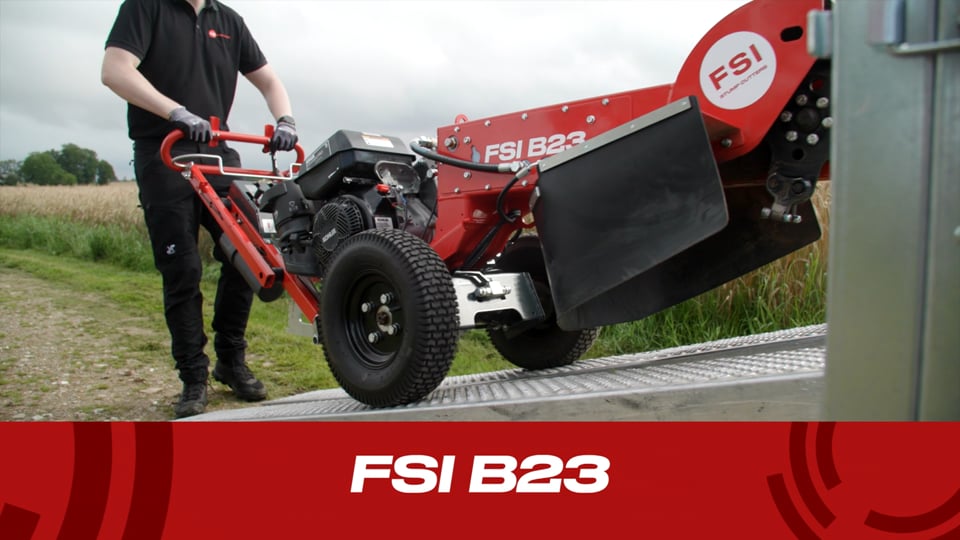

The hydraulic wheel drive enables effortless driving across terrain and up ramps. Control the direction of travel simply by turning a section of the handle – intuitive operation that feels natural from day one.

Easy transport

With multiple, easily accessible lashing and lifting points, you can quickly secure the B23 for transport and arrive safely at your next job site.

Additional information

Engine

Engine

Engine type

Kohler CH440 | Honda GX390

Engine size

10.5 kW / 14 hp | 8.2 kW / 11.1 hp

Fuel

Petrol

Drive system

Drive system

Ground drive

2WD Hydraulic

Brake

Manual

Dimensions

Dimensions

Length

1870 mm

Width

680 mm

Height

1300 mm

Work area

Work area

Above ground level

30 cm

Below ground level

25 cm

Sweep

118 cm

Max cutting depth

2.1 cm per sweep

Cutting head

Cutting Head

Diameter

386 mm

Tooth system

FSI 21

No. of teeth

2,1 cm, 8 pcs

Clutch

V-belt

Cutter wheel drive

V-belt

Sweep system

Manual

Operation

Operation

Operation

In the handle

Feature

Document tube, Hour meter

Optional

Special RAL color
